General Information

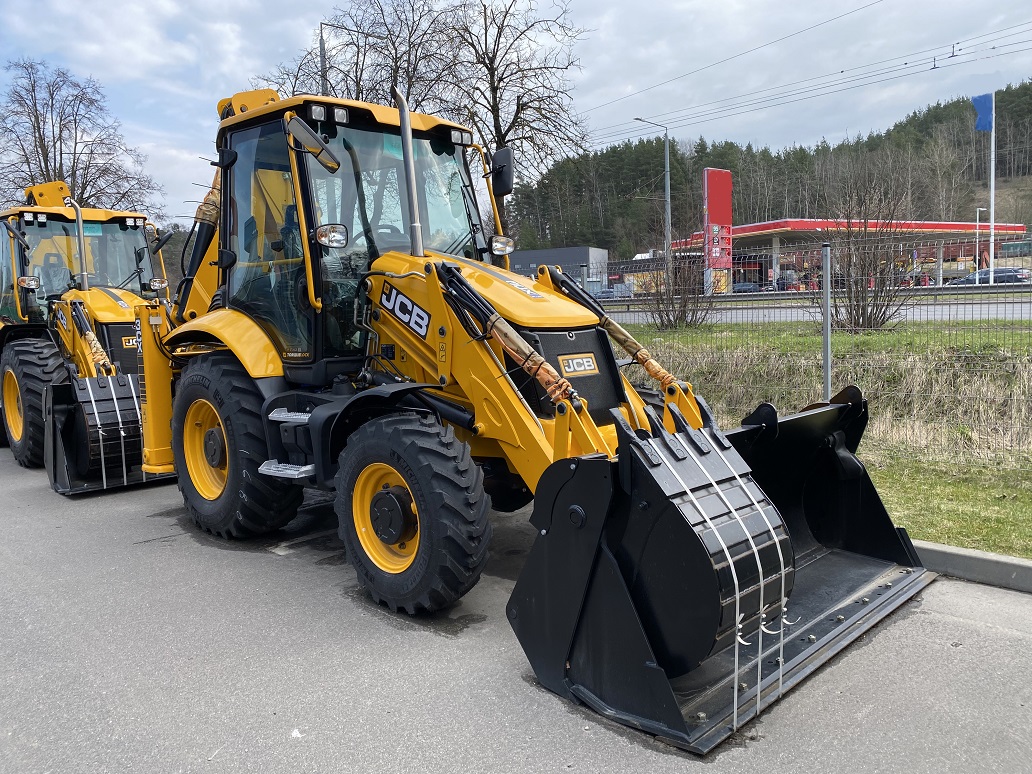

This 2023 JCB 3CX Sitemaster Plus is a premium-specification, ultra-low-hour backhoe loader configured with a highly versatile 4WD chassis.
Only 3 original operating hours are recorded on the digital meter, presenting the machine in absolute brand-new, showroom condition.
Features a substantial operating weight of 8,600 kg (8.6 tonnes), delivering an optimized balance of heavy-duty stability and exceptional site performance.
Fully certified with CE marking documentation for absolute European regulatory compliance.

Engine & Performance
Powered by a high-performance JCB 448 4-cylinder engine equipped with a Diesel Particulate Filter (DPF) and AdBlue exhaust aftertreatment.
Delivers a net engine power output of 81.0 kW (approx. 109 hp / 109 PS) under efficient Euro 5 / Tier 4 Final emissions compliance.
Paired with a smooth 4/4 Powershift transmission featuring the innovative JCB Torque Lock high-speed system, which significantly improves transit efficiency and reduces fuel consumption by up to 25%.
Capable of swift road transit up to a 42 km/h maximum travel speed.

Boom, Arm & Working Range

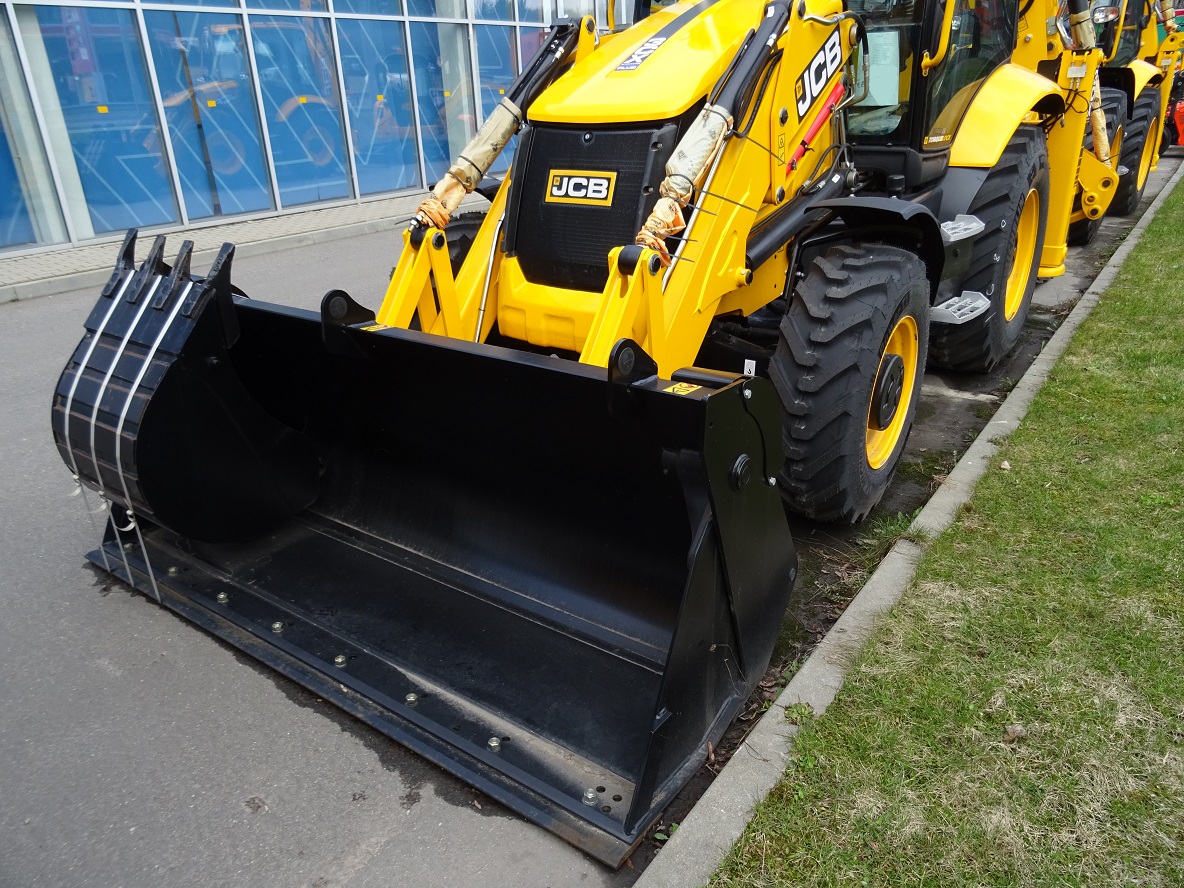

Equipped with a heavy-duty loader arm carrying a 2,350 mm wide 6-in-1 multi-purpose front bucket with a 1.0 m³ capacity and a load-over height of 2,720 mm.
Advanced Automatic Loader Positioning System (Shovel Reset) and Smooth Ride System (SRS slow motion system) integrated for optimal material retention and cycle efficiency.
Rear backhoe assembly outfitted with a standard 600 mm rear bucket.

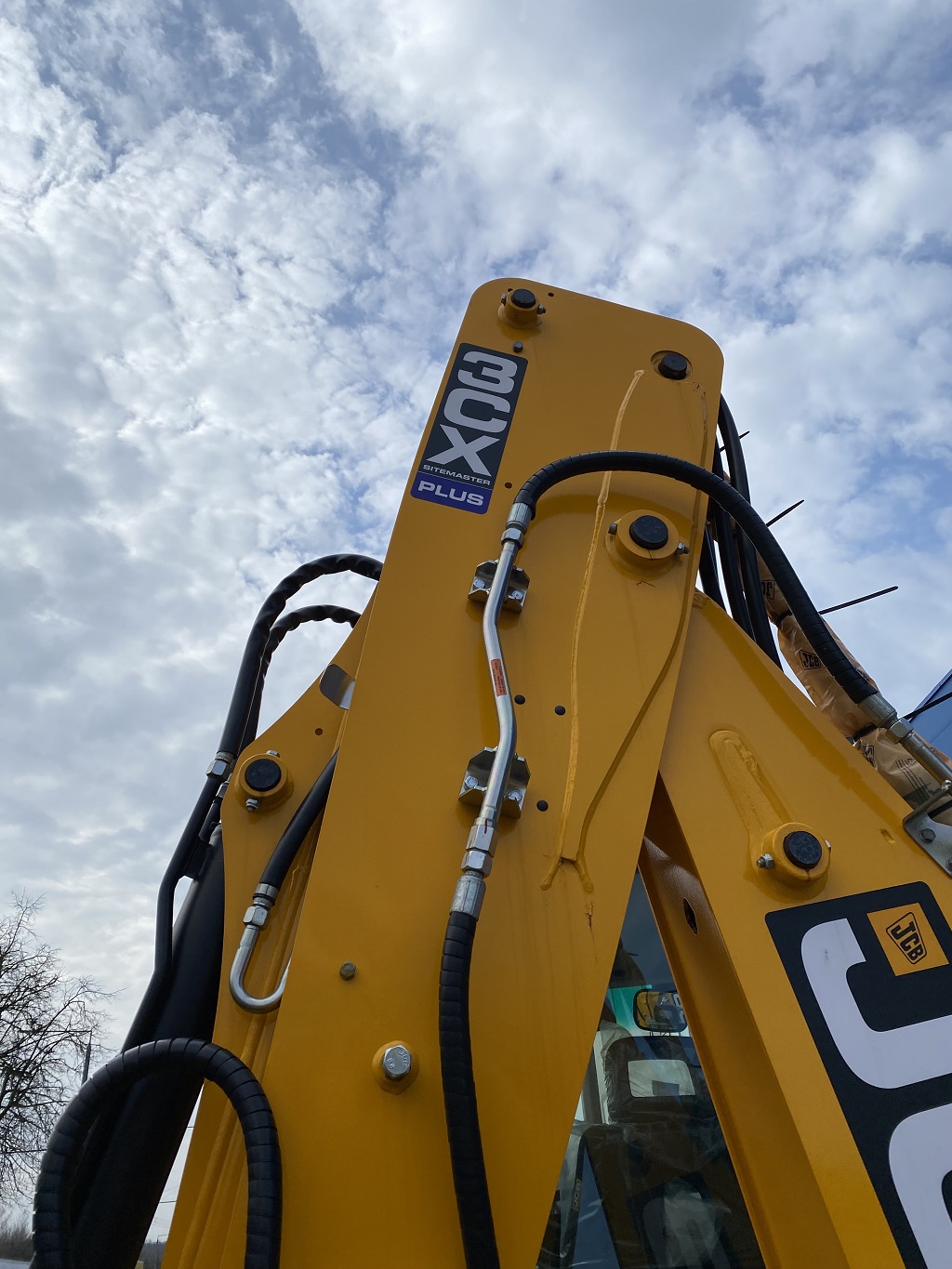

Upgraded with a factory boom and hydraulic arm extension extending to 7,870 mm, allowing a maximum backhoe digging depth of 5,460 mm and a maximum loadover height of 4,720 mm.

Hydraulics & Safety Systems

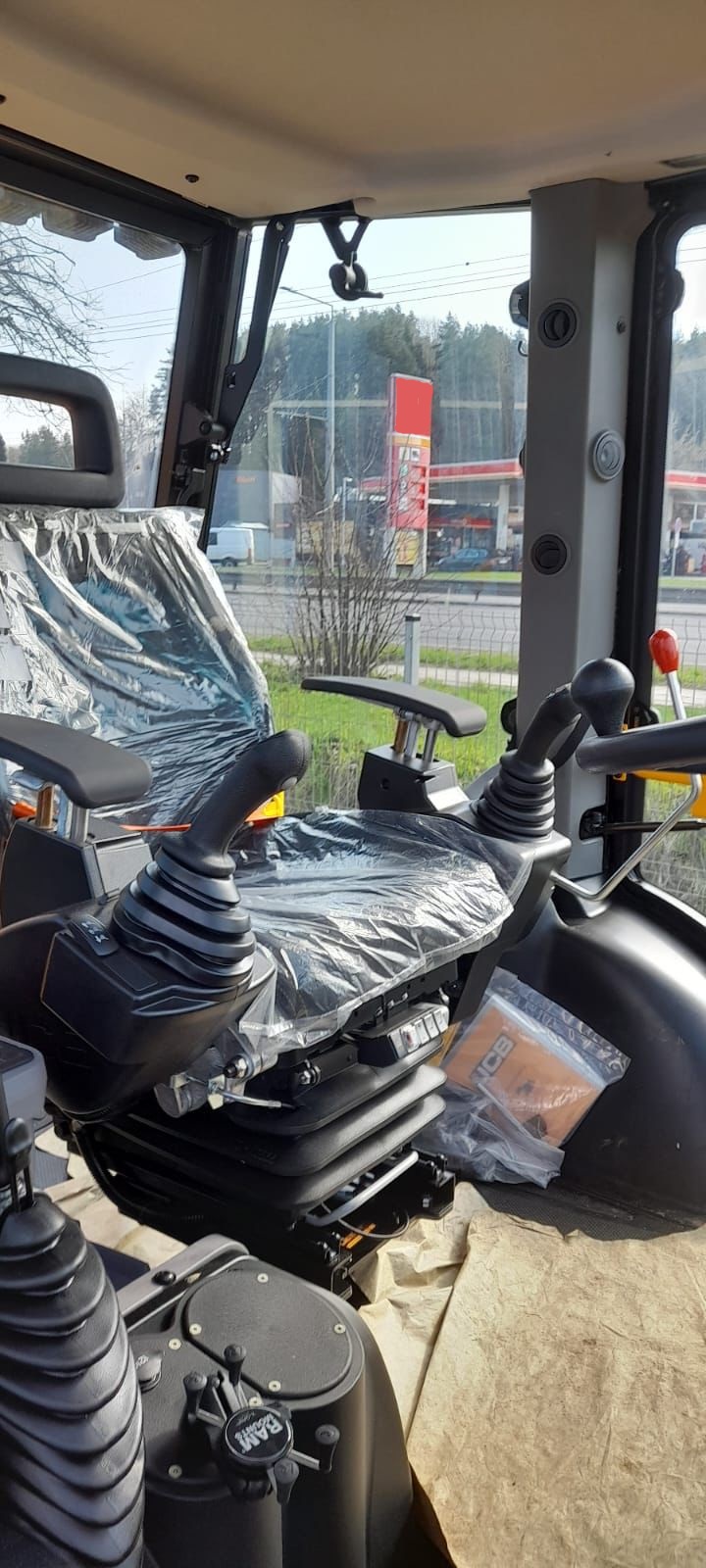

Premium precision handling via responsive JCB hydraulic joystick steering and an Advanced Easy Control management array.
Pre-plumbed with a full, two-way hydraulic line for attached equipment, enabling seamless support for specialized hydraulic attachments.
Built-in emergency blocking system for the hydraulic lines and an acoustic reverse travel alarm for maximum job site safety.

Cabin & Operator Comfort
Fully glazed, premium enclosed ROPS / FOPS compliant cabin complete with a high-capacity air-conditioning and heating climate control layout.

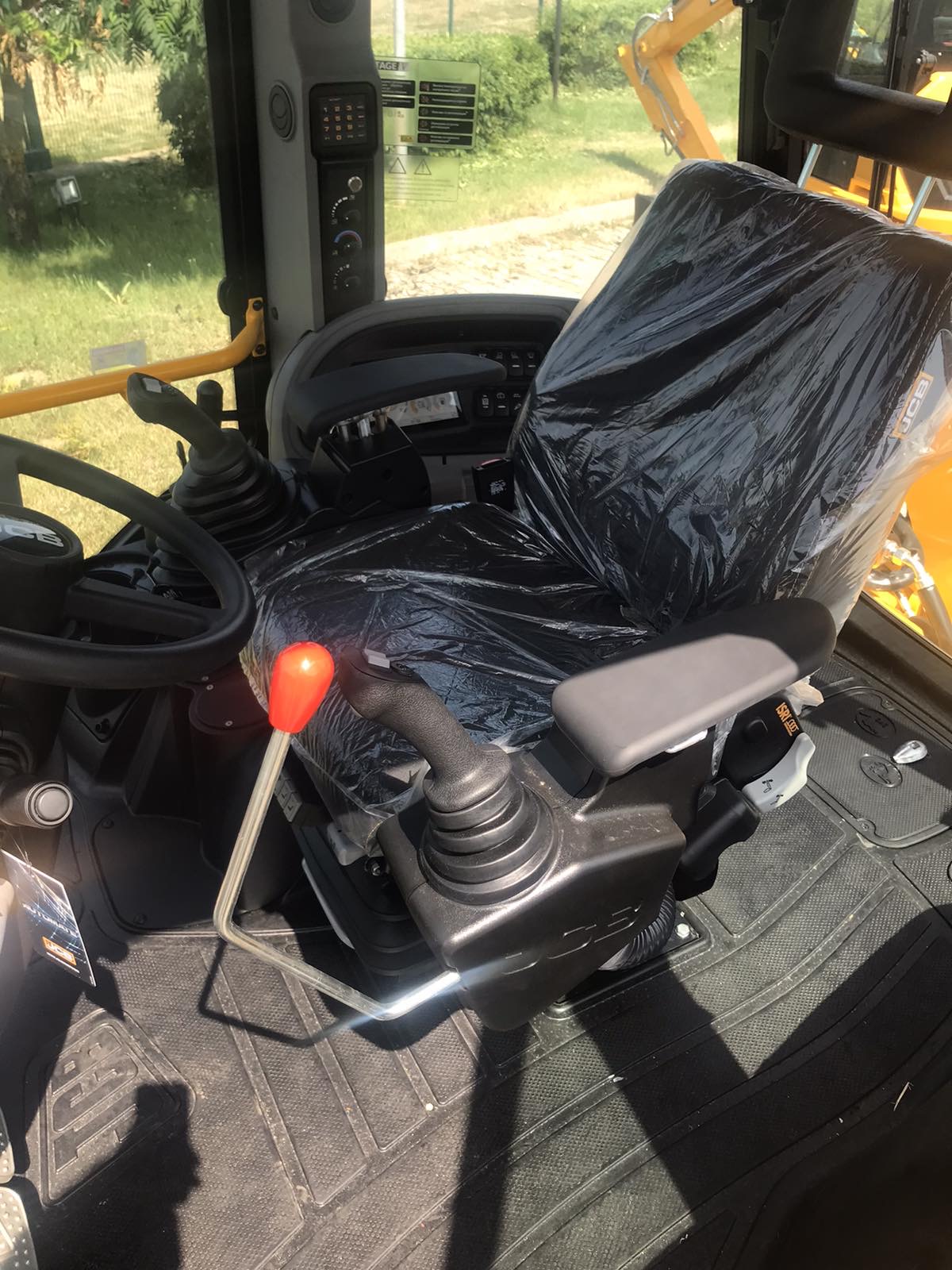

Outfitted with a luxury air-suspension seat with integrated heating and a top air pre-filter system.

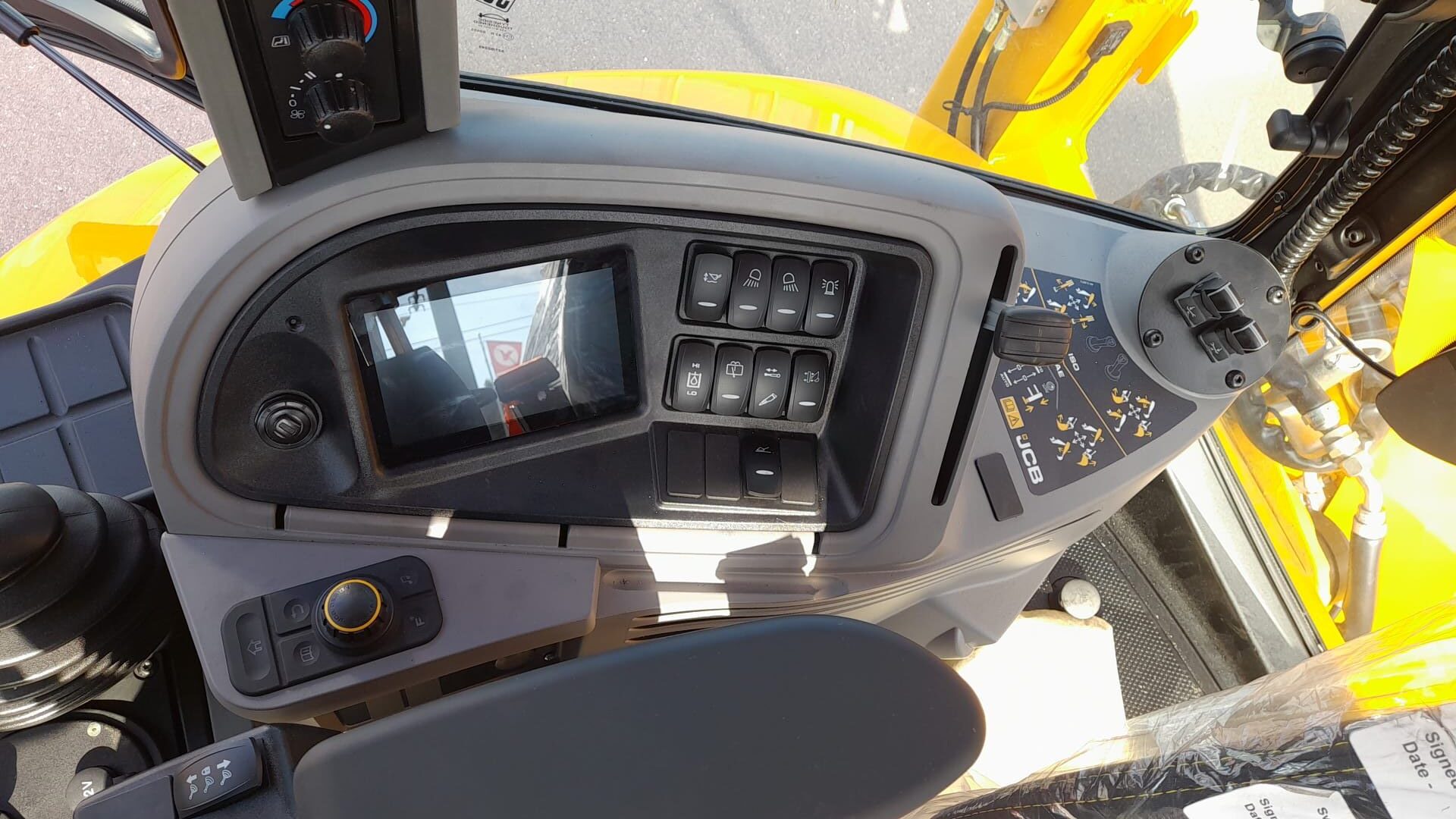

Equipped with an integrated Radio-MP3 player, premium digital monitoring dashboard, and the JCB LiveLink full remote monitoring and control system.

Wheels, Tyres & Logistics Information
Premium Michelin agricultural/industrial tread tyres:

Front Axle Tyres: Michelin 340/80-18”
Rear Axle Tyres: Michelin 440/80-28”

Transport Dimensions (L x B x H): 5,620 mm x 2,350 mm x 3,610 mm
