General Information

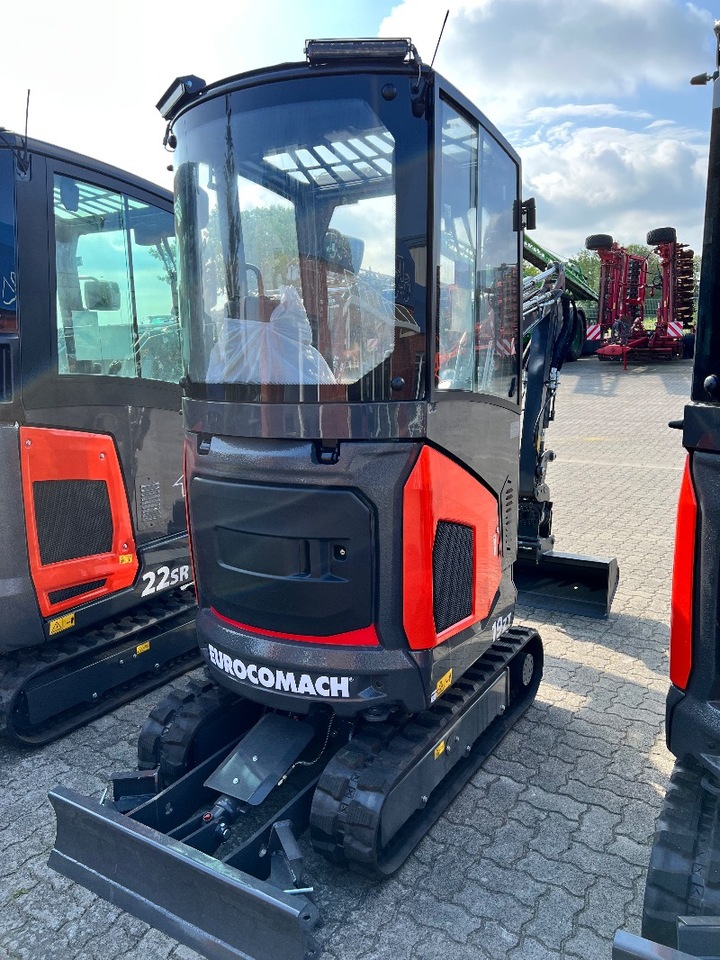

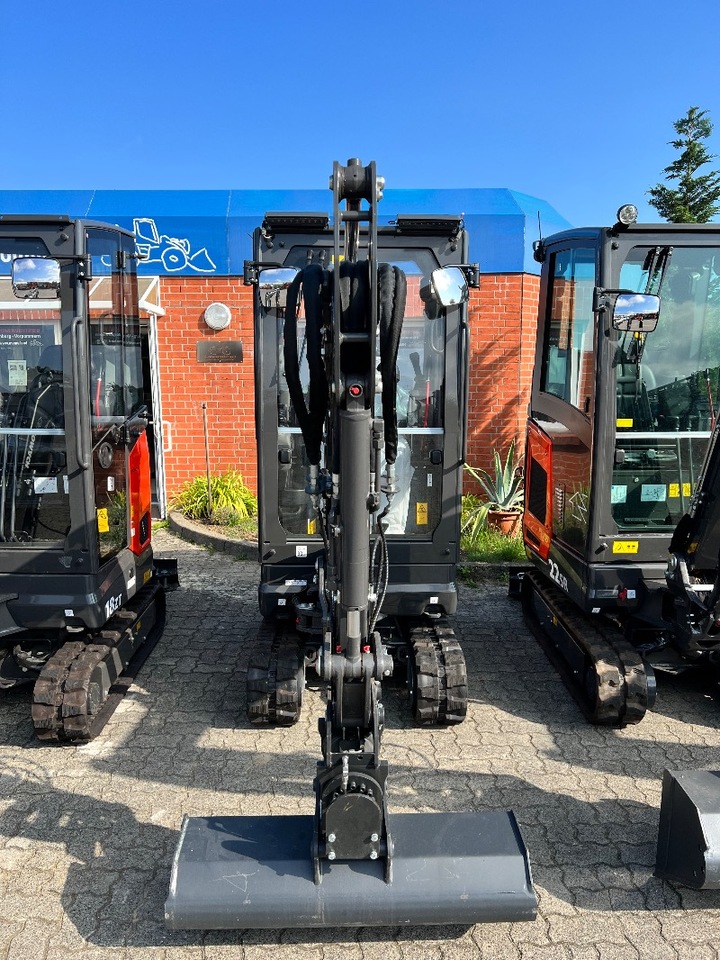

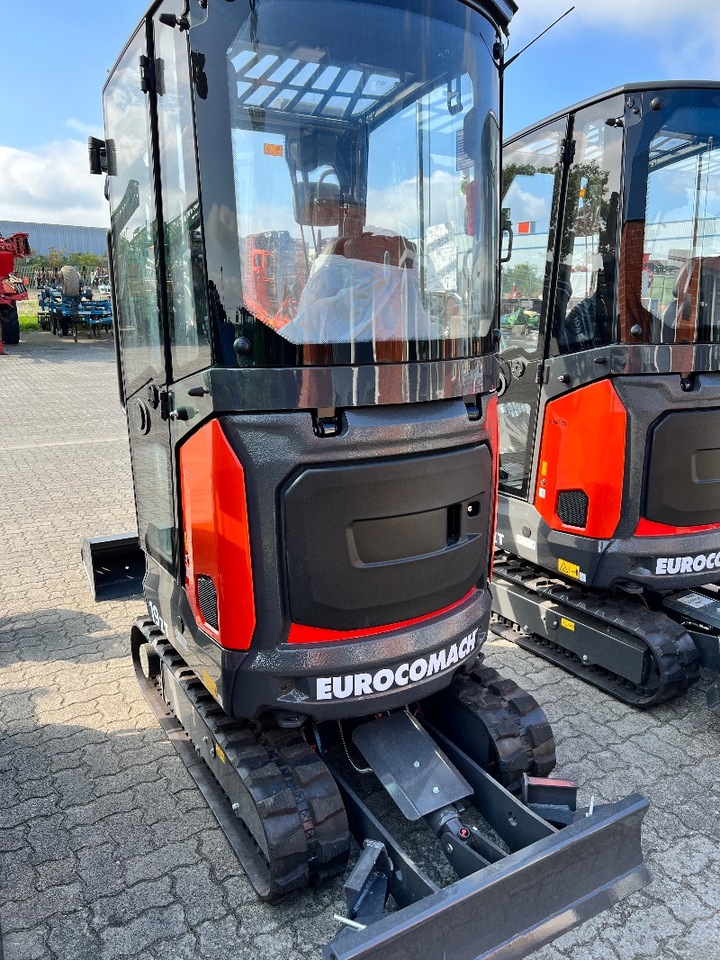

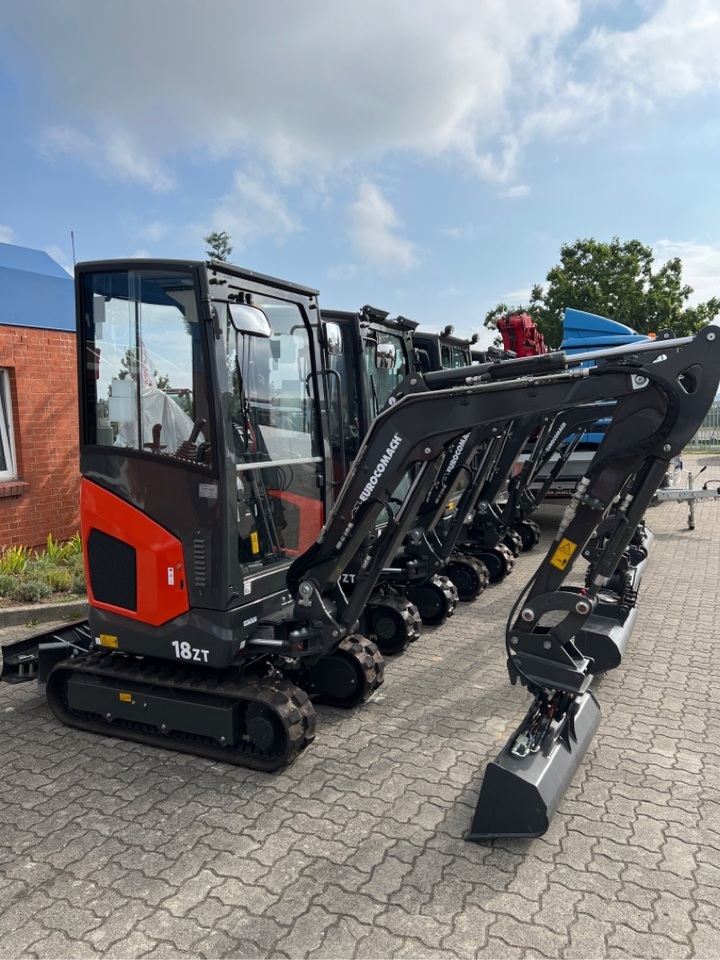

This 2023 Eurocomach 19 ZT zero-tail-swing mini excavator is a brand-new machine offered for sale.
Features a standard commercial 4-point transportation anchoring system for secure transit haulage.

Engine & Performance
Powered by a liquid-cooled 18.6 hp / 13.7 kW 3-cylinder Yanmar 3TNV76 diesel engine.
Fully compliant with Stage V emission standards.
Equipped with electronic alert display monitors for the engine air intake filter and hydraulic oil filter restrictions.
Drivetrain features a 2-speed travel tracking system.

Dimensions & Weights
Operating weight: 1,900 kg (configured with full cabin enclosure and rubber tracks).
Maximum digging depth: 2,280 mm.
Maximum dumping height: 2,580 mm.

Hydraulics & Undercarriage
Outfitted with a hydraulically retractable undercarriage adjusting from a compact 990 mm to 1,300 mm width for tight alleyway or gate entries.
Includes a matching front backfill dozer blade.
Driven by an open-center hydraulic system driven by a high-efficiency variable displacement pump.
Implements precise command management via ISO hydraulic pilot controls.
Outfitted with standard durable rubber tracks.

Cabin & Comfort
Full ROPS / TOPS / FOPS (Stage 1) safety-certified cabin platform featuring an integrated high-output heater and defroster system.
Features a gas-strut assisted opening front windscreen, an adjustable operator seat with a seatbelt, folding travel foot pedals, and padded wrist supports.
Cab conveniences: Interior sunshade blind, auxiliary courtesy dome light, an integrated digital display tracking hour meter, engine water temperature, and fuel levels.
Safety features include a hydraulic safety lockout control lever that isolates all machine movements during operator entry and exit.

Visibility & Lighting
Upgraded to a full LED lighting package featuring high-intensity work lights mounted on both the front and rear of the machine.
