General Information

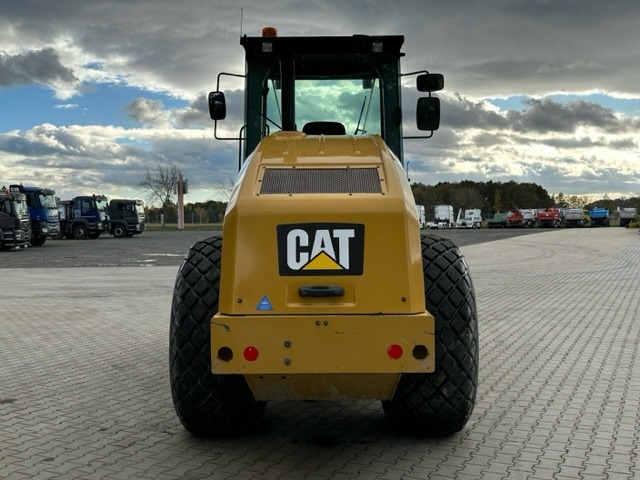

This 2019 Caterpillar CS65B is a high-performance, heavy-duty single-drum vibratory roller engineered for superior soil compaction, high reliability, and deep-layer density output.
Only 1,975 original operating hours are recorded from new, presenting the machine in outstanding, low-hour used condition.
Features an unladen operating weight of 12.36 tonnes (12,360 kg), delivering an exceptional balance of static weight, high centrifugal force, and ground compaction performance,

Engine & Performance

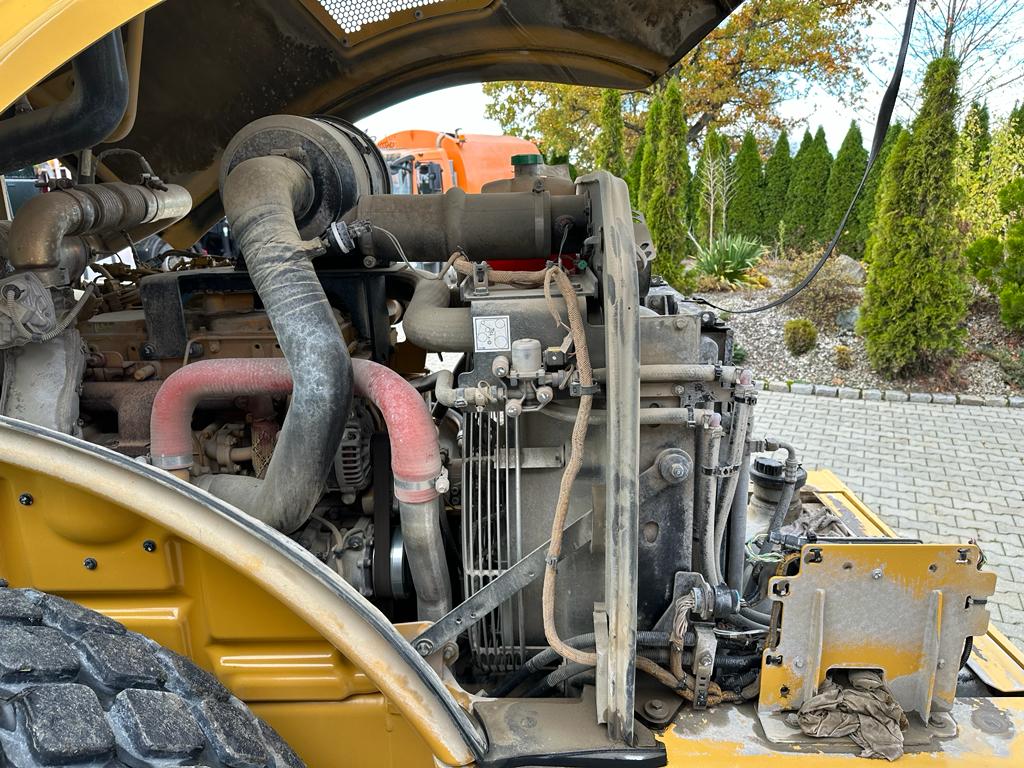

Powered by a rugged, water-cooled 4.4-litre, 4-cylinder Caterpillar C4.4 ACERT diesel engine.
Delivers a massive net power output of 117 kW (approx. 157 hp / 159 PS) for continuous, heavy-cycle site operations.
Fully compliant with strict environmental standards under Tier 4 Final emissions regulations.
Built with an efficient hydrostatic travel drive system, reaching a 11.4 km/h maximum travel speed.

Compactor & Vibratory Specifications

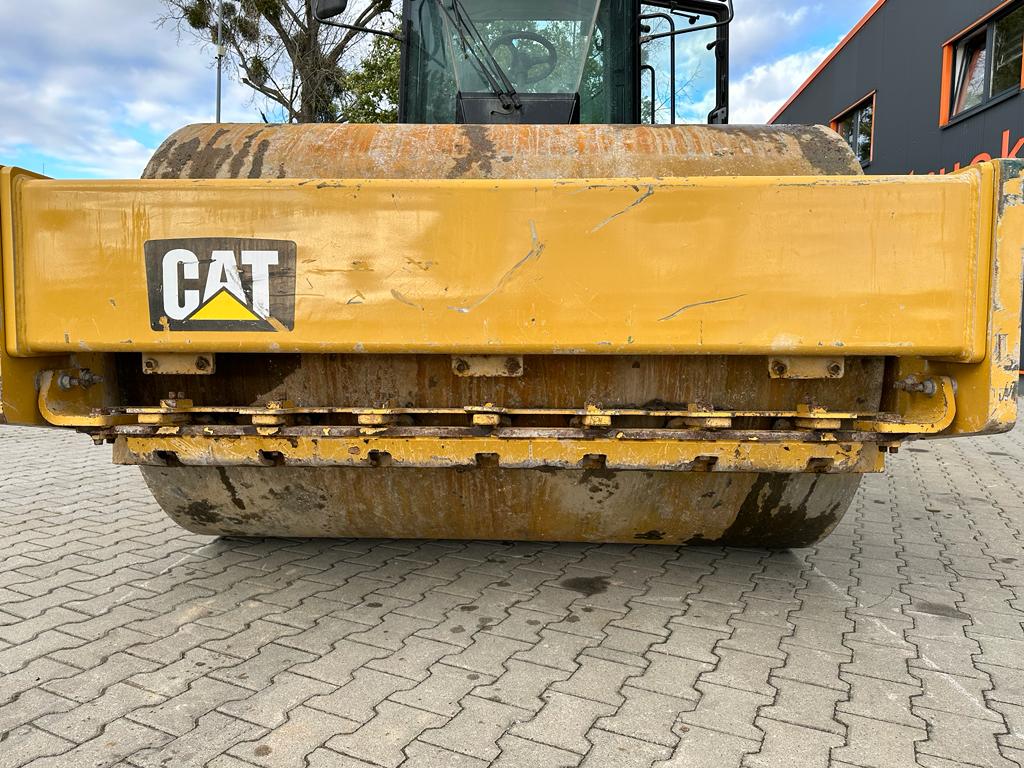

Drum Footprint: Built with a standard 2,134 mm total drum width and a large 1,534 mm drum diameter.
High-output vibratory compaction system delivering a dual-amplitude working frequency of 30.5 Hz paired with a deep-impact 2.1 mm amplitude.
Massively effective compaction metrics producing a maximum centrifugal force of 301 kN backed by a 34.5 kg/cm static linear load.
Highly agile, articulation-steered footprint with a tight outer turning radius of 5.81 m and an inner turning radius of 3.68 m.

Cabin & Structural Layout
Fully enclosed ROPS/FOPS certified operator cabin enclosure optimized for low sound levels and all-around job site visibility.
Ergonomic control layout with integrated travel and vibration joysticks, adjustable seat, and essential diagnostic vital monitors.
Equipped with dual-axle structural tie-down transport hooks.

Dealer & Logistics Information
Transport Dimensions (L x B x H): 5.85 m x 2.33 m x 3.11 m
